up to 2500 kVA (50 Hz) / 2000 kW (50 Hz)

up to 3000 kVA (60Hz) / 2400 kW (60Hz)

up to 97%

0.8 ind. up to 0.9 cap

380 V / 400 V / 415 V / 480 V (up to 35 kV)

50 Hz or 60 Hz

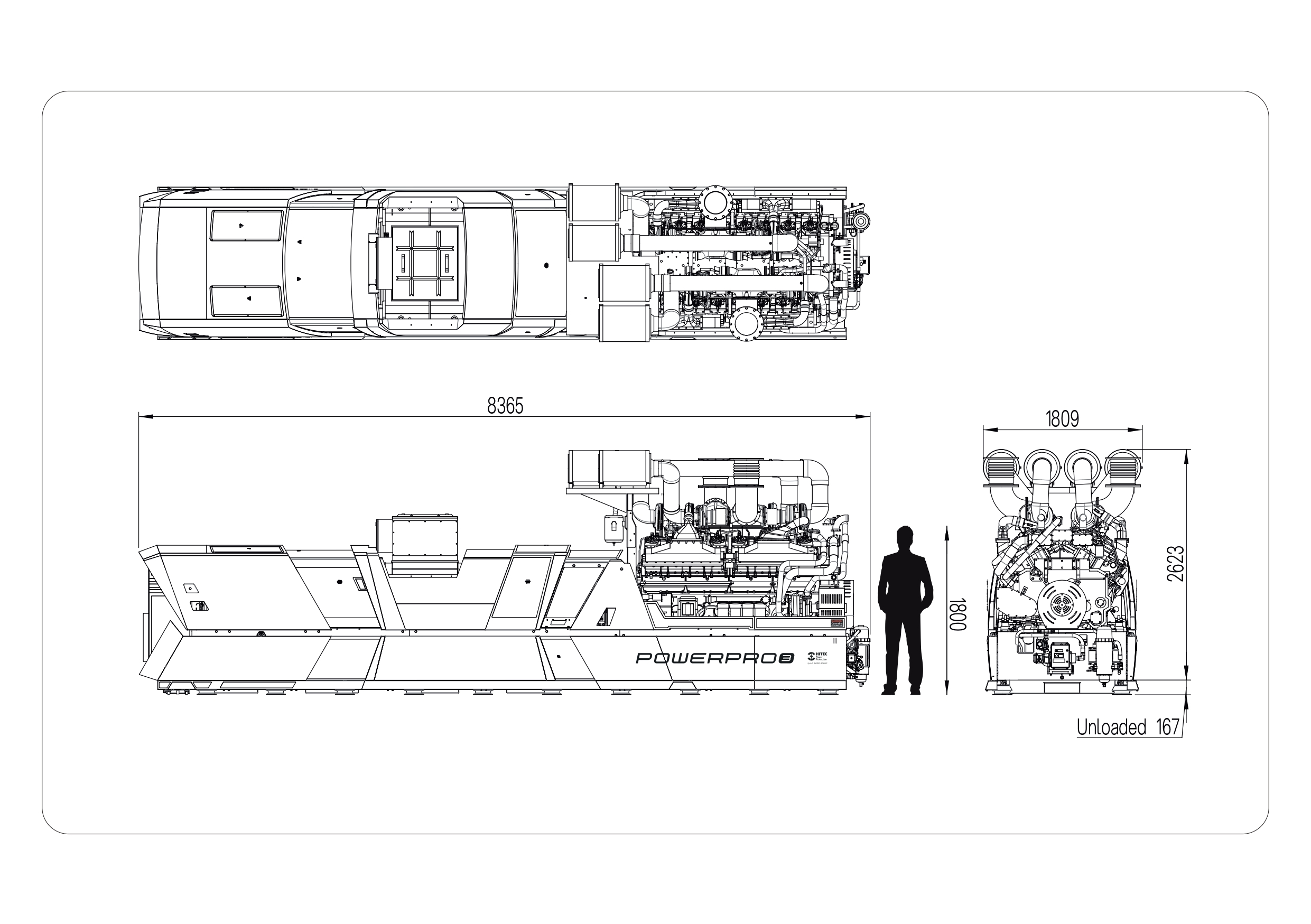

28860 - 30960 kg

‍

HITEC Power Protection WE-BCD

HITEC Dicon 2.1

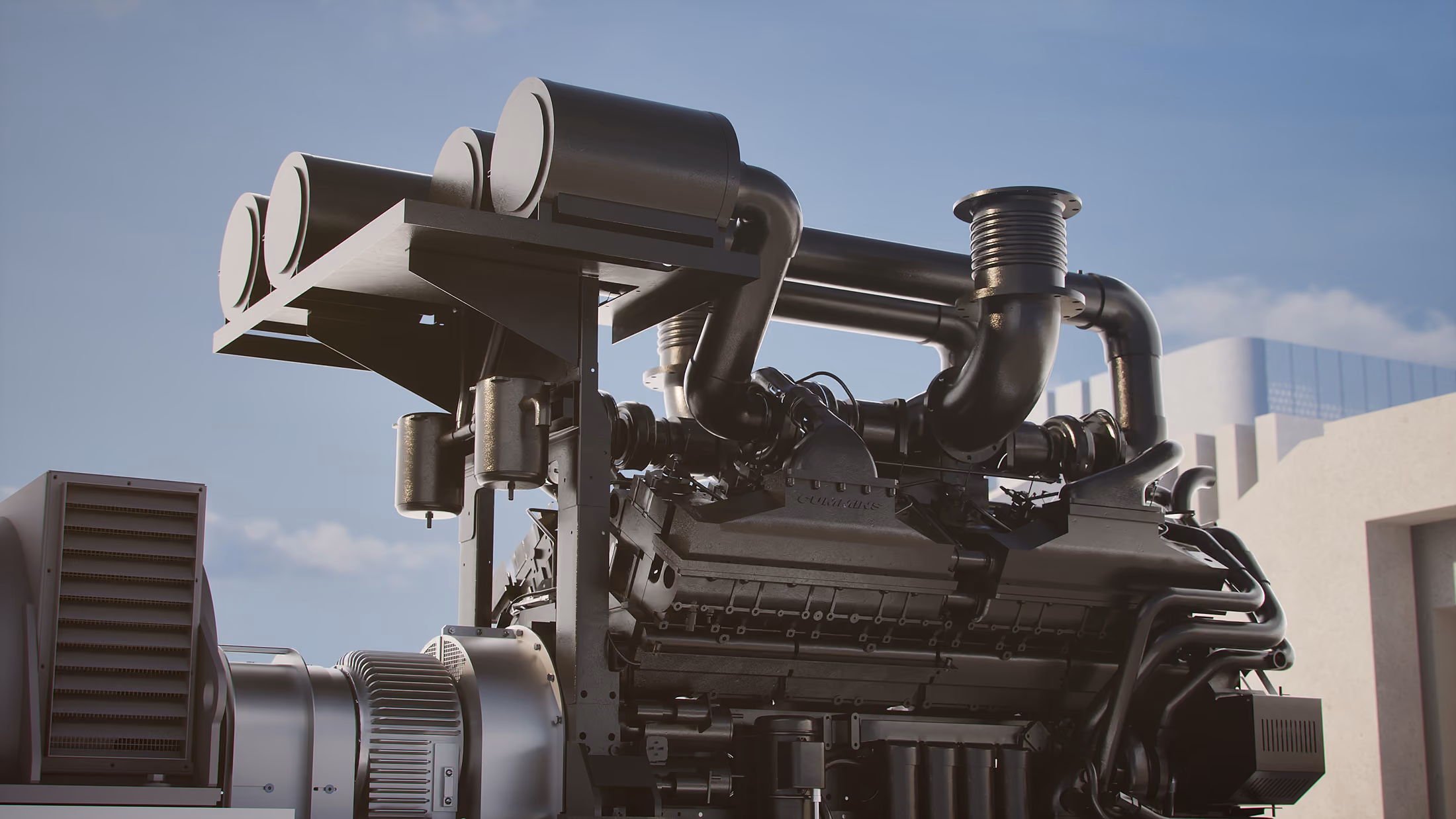

Cummins G-Drive QSK60 or QSK78

AVK DSG86 or DSG99

Stieber XL

The PowerPRO3 is the latest generation of HITEC’s proven Dynamic UPS technology. It builds on the trusted PowerPRO platform and delivers more uninterruptible power, higher efficiency, improved sustainability, and greater performance, all within the same footprint.

The PowerPRO3 provides more No‑break power than the previous generation, without increasing system size or complexity. This means customers get more usable capacity, better efficiency, and improved value from the same reliable architecture.

• Optimized lubrication
• Enhanced bearings
• Higher RPM and increased mass

Higher No‑break capacity means your critical loads are protected more robustly and for longer during power disturbances. It also gives you more headroom for growth and improves system resilience against short‑term grid events.

No. The PowerPRO3 delivers higher power density within the same footprint. There is no need for additional floor space, major layout changes, or extra infrastructure to benefit from the increased performance.

The improved capacity and efficiency delivers:

• Lower cost per kW
• Fewer engine starts
• Reduced fuel consumption
• Lower emissions and wear

Over the lifetime of the system, this contributes to a lower total cost of ownership.

Engine Start Delay means the system can ride through short power disturbances without starting the engine.This results in:

• Less fuel use
• Lower emissions
• Reduced noise
• Longer engine life

Especially valuable in regions with unstable grids or frequent short interruptions.

Yes. The PowerPRO3 is designed to support increasing power demands. The higher capacity gives customers additional margin for future growth without needing immediate system upgrades.

The PowerPRO3 is ideal for mission‑critical environments such as:

• Data centres
• Semiconductor manufacturing
• Healthcare and medical facilities
• Financial services
• Industrial and infrastructure applications

Anywhere downtime is not an option.

The PowerPRO3 supports operation with up to 100% renewable HVO fuel and reduces engine runtime thanks to fewer starts. This helps customers lower CO₂ emissions without compromising reliability.

The PowerPRO3 combines:

• Proven Dynamic UPS reliability
• Higher power density
• Excellent efficiency
• Lower lifetime cost
• Strong sustainability performance

All in a single, integrated system trusted worldwide for critical power protection.

‍

The PowerPRO3 is the next commercial evolution of the PowerPRO2700 platform, delivering a higher No‑break capacity within the same footprint. It builds on a proven installed base of 100’s of PowerPRO2700 systems worldwide, while unlocking additional performance made possible by advances in engine and flywheel technology.

The renaming reflects both a product line refresh and a step‑change in performance, rather than a minor upgrade. “PowerPRO3” positions the product clearly within the PowerPRO range and avoids confusion by signalling a new commercial generation of the platform.

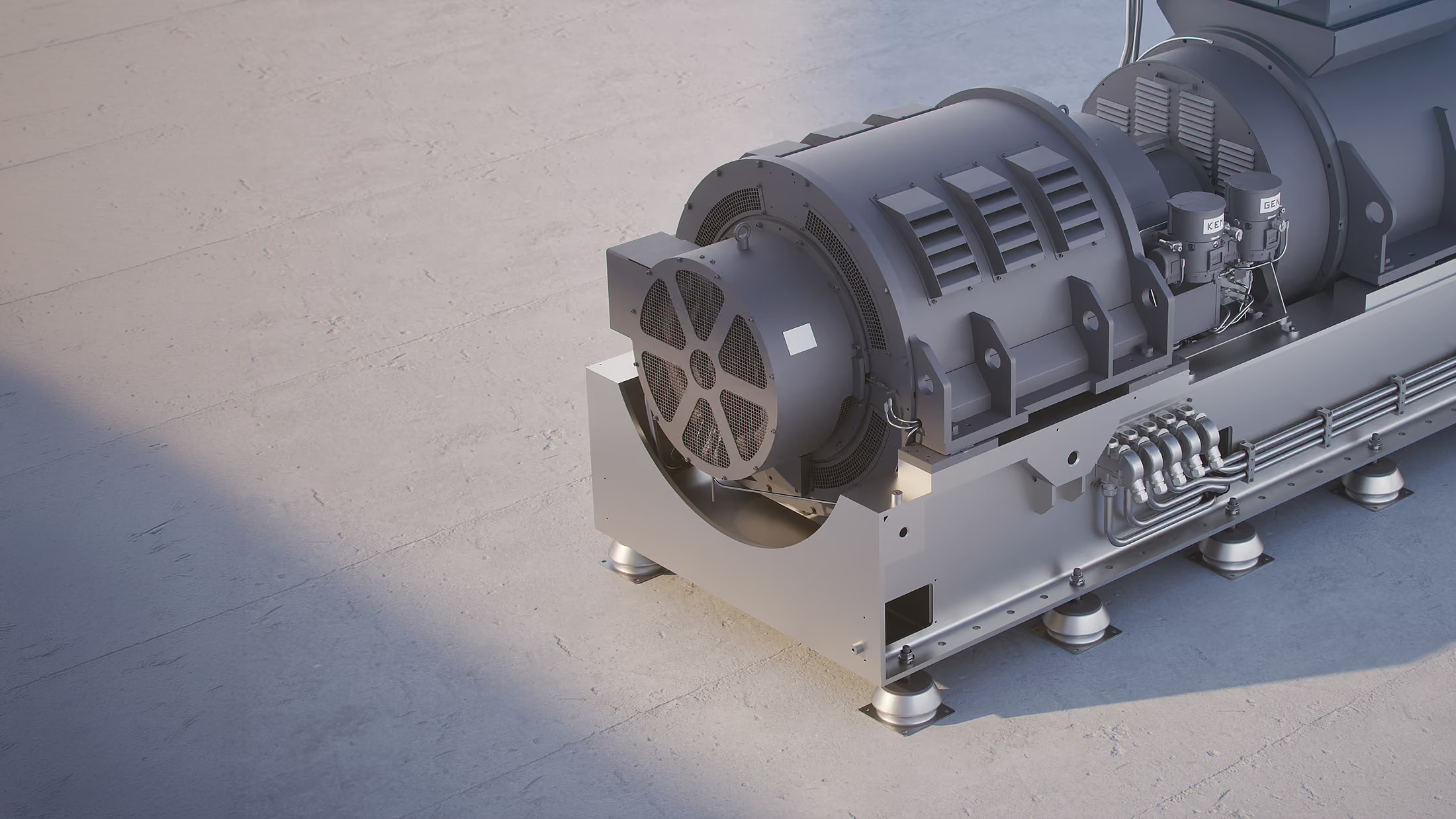

The PowerPRO3 delivers up to 3000 kVA of true No‑break power (at 60 Hz) within the same physical footprint as the PowerPRO2700. This is enabled by a re‑engineered Kinetic Energy Module (KEM) that stores up to 30% more kinetic energy.

Higher RPM – up to 4200 RPM
Higher mass + 500kg

Rather than altering the external dimensions, HITEC engineers optimized:

• Flywheel rotational speed
• Flywheel mass
• Optimized greasing
• Better bearings

This approach preserves form & fit compatibility while safely increasing stored energy through validated parts and endurance testing.

No. One of the core benefits of the PowerPRO3 is higher power density more kVA per square meter. Customers gain increased No‑break capacity without additional space, civil works, or infrastructure changes.

Higher No‑break capacity aligned with modern engines results in:

• Lower cost per kW
• Fewer systems required for the same load
• Improved utilisation of engine capability
• Reduced fuel use through extended Engine Start Delay (ESD)

Together, these factors improve both CAPEX efficiency and long‑term operating costs.

With more kinetic energy available, the PowerPRO3 can ride through longer disturbances before starting the engine. This leads to:

• Fewer engine starts
• Lower fuel consumption
• Reduced emissions
• Less engine wear

Particularly valuable in grids with frequent short disturbances.

Yes. The upgrade strategy deliberately retained the same KEM external dimensions, enabling compatibility paths for existing customers where applicable and simplifying spares, servicing, and lifecycle support.

The PowerPRO3 is especially attractive for:

• Data centres (higher density, better $/kW)
• Semiconductor fabs
• Radar & defence installations
• Financial services
• Critical industrial processes

Anywhere customers need maximum No‑break performance within constrained space.

All HITEC Dynamic UPS systems, including the PowerPRO3, are certified for operation with up to 100% HVO fuel, enabling immediate CO₂ reduction without hardware modifications. Combined with reduced engine starts, this supports lower‑carbon power strategies.
